PARKER CORPORATION
PRODUCTS LINE-UP HAND TOOL TYPE


Application for welding of hard thermoplastic materials

PHW7

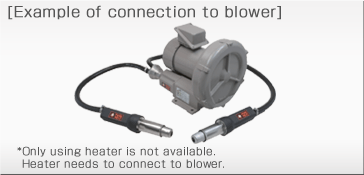

Example of connection to blower

PHW7+7B
〔FEATURE〕
■ Limit of usable max.temp.650℃
■ Small and compact design
■ Possible of continuity operation
■ Temperature control circuit built in (electronically steplessly controlled)
■ Heater protect circuit built in
■ Possible of air flow adjustment
Type
Voltage
Power consumption
Hot air temp.
Min. requirements Air flow
Weight
Temperature control
PHW7-1
100V(Single phase)
1350W
20～650℃
90L／min
(Please prepare blower)
0.8kg
Exist
PHW7-2
200V(Single phase)
PHW7-2.3
230V(Single phase)
PHW7N-2
200V(Single phase)
650℃(MAX)
Non
PHW7N-2.3
230V(Single phase)
Leaflet download   Drawing installation dimension in mm (DXF file) General leaflet
Before to use, please download the file.
