PRODUCTS LINE-UP DEVICE BUILT IN TYPE


Hot air heater

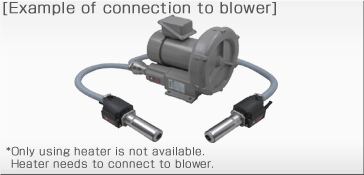

PHS25   Example of connection to blower
〔FEATURE〕
■ Limit of usable max.temp.650℃
■ Small and compact design
■ Possible of continuity operation
■ Temperature control circuit built in (Only PHS25 type.)
■ Heater protect circuit built in (Only PHS25 type.)
■ Possible of air flow adjustment
Type
Voltage
Power consumption
Hot air temp.
Min. requirements Air flow
Weight
Temperature control
PHS25-2
200-230V(Single phase)
2500-3300W
60～650℃
230L(Please prepare blower)
0.5kg
Exist
PHS25N-2
650℃(MAX)
Non
Leaflet download   Drawing installation dimension in mm (DXF file) General leaflet
Before to use, please download the file.
